Machine replaces railway track ties has standard safety features include directional lighting, slew and boom restriction and rail wheel brakes.
Tel/Whatsapp : HJC黄金城·:+8618805957336
Fax : 13799243565Email : winny@fjjgjx.com

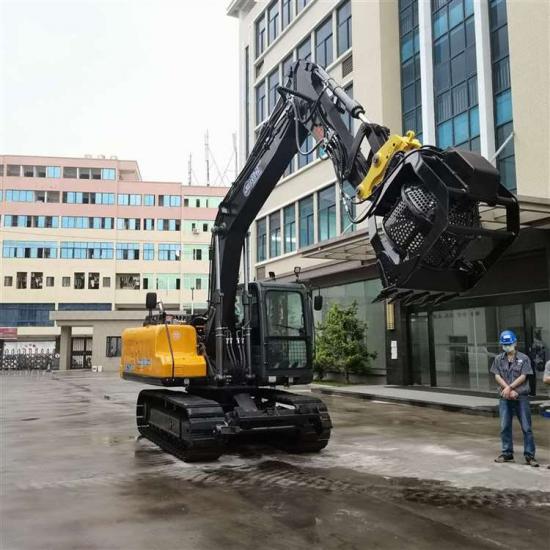

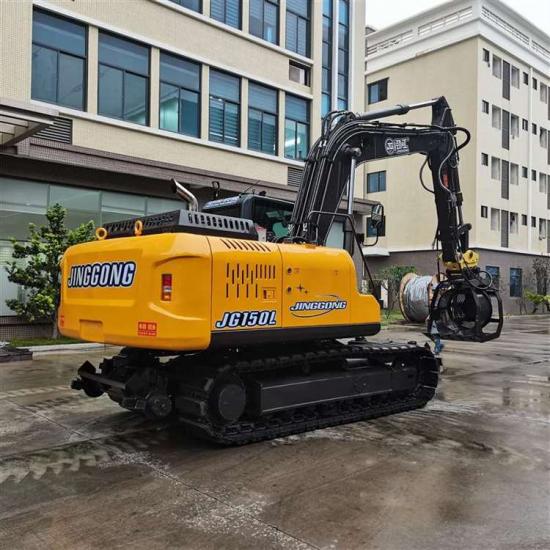

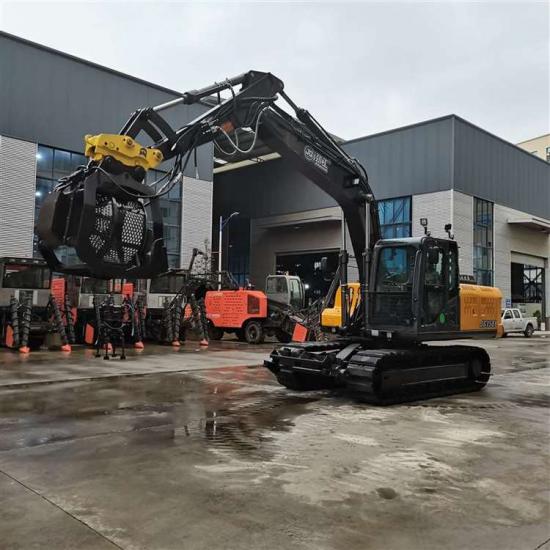

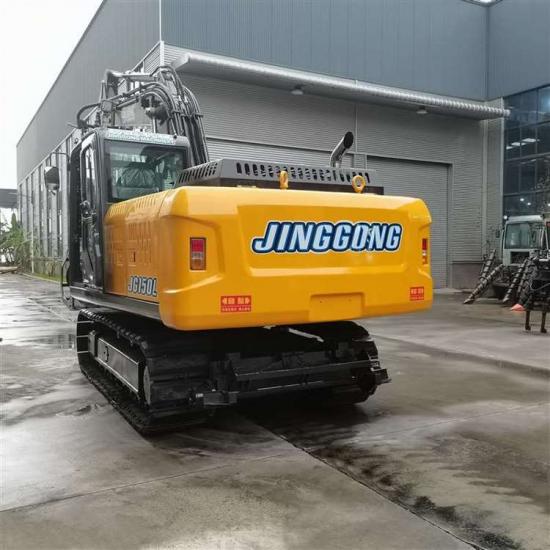

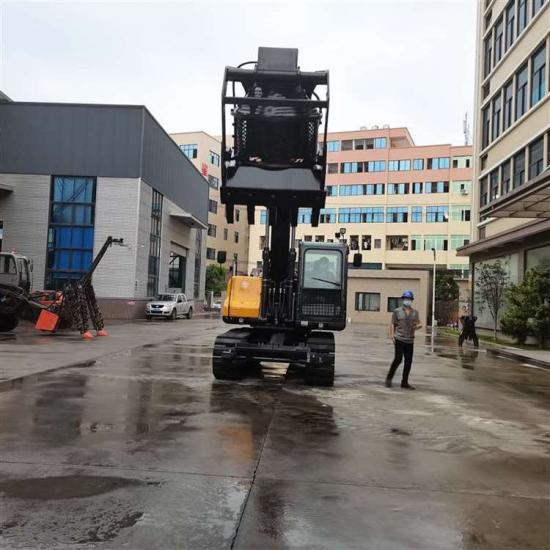

Machine Replaces Railway Track Ties
l Railway tie replacement Features:
꧙ 1. Full hydrauliꦦc pilot operation, advanced and perfect operation system, light and flexible.
2. Development Patent: Grapple rotates flexibly to improve work efficiency.
3. Railway track ಌlaying equipment sleeper laying machine power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.
l Main Parameters:
|
(Length*width*height) travel position |
7500*2500*3500mm |
|
Machine weight |
13000kg |
|
Rated Power |
102kw |
l Certificates:
Q: What is your railway track laying equipment sleeper laying machine payment term ?
A:We accept T/T, L/C at sight, Western Union, Paypal etc.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment.
A:Definitely yes; just kindly advise us your special demands, we’ll get the job done.
| Sleeper Replacement Machine Specification | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Angle of rotation of The Shear | 360° | |||||||||
| Max.Opening Distance of The Shear | 650mm | |||||||||
| Length Of Hydraulic Shear Blade | 2-2*185mm | |||||||||
| Maximum Cutting Force (in middle of blade) | 350KN | |||||||||
| Maximum Lifting Height of Car Pressing Hand | 2000mm | |||||||||
| Maximum Distance of Car Pressing Hand Working | 4780mm | |||||||||
| DIMENSION | (Length*width*height)Transport Dimensions | 7500*2500*3500mm | ||||||||
| Roller gauge | 2850mm | |||||||||
| Track gauge | 1960mm | |||||||||
| Width Of Crawler | 500mm | |||||||||
| Ground clearance of counterweight | 940mm | |||||||||
| Min ground clearance | 420mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 13000kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 102kw | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 28Mpa | |||||||||
| Hydraulic system flow | 260L/min | |||||||||
| Variable piston pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| Walking speed (High speed/Low speed) | 5/2.9km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Full circle swinging time | 5s | |||||||||
| Swing Overload Pressure | 25Mpa | |||||||||
| Fqt Fuel Quantity | ≥8L/h | |||||||||
| Capacity Of The Fuel Tank | 200L | |||||||||
| Hydraulic Tank Capacity | 200L | |||||||||
