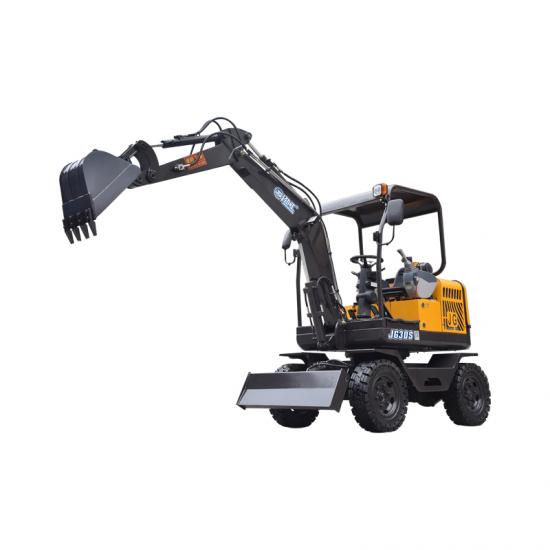

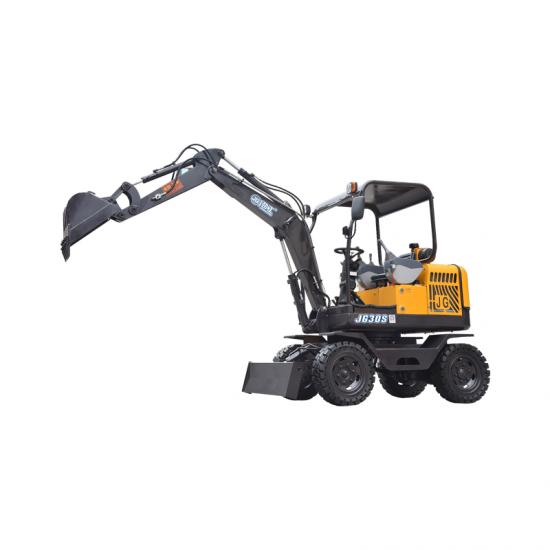

3 tons mini wheel excavator with bucket
| Features
1.This mini wheel excavator has💛 beautiful appearance, high configuration, superior performance, low fuel consumption and wide working range.
2.The hydraulic system based on load-sensing technology has good operation performance and soft movements, which can prove the precise operation.
3.360° rotation is suitable for safe operations in🍎 small spaces, such as: loosening of soil in vegetable greenhouses, gree🌊ning of campuses in municipal departments, tree planting openings in orchard nurseries, crushing of concrete pavements, mixing of sand and gravel materials, and construction in narrow places.
| Main Parameters
Length*width*height
4200*1300*2520mm
Rated Power
22.1KW
Maximum Digging Force
15KN
Machine weight
2500KG
| Main Parts of Hydraulic Excavator
We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.
| Why Choose Us
1.Strict quality management produce effective and stable products t♊o meet customers' needs.
2. Strict detecting system and advanced🍌 inspection equipment.
3.Professional sales team, quality inspection & report, maritime logi💙stics guidance.
4.We grants our clien🐟ts a twelve-month-period or 2000-hours warranty for any machine purchased from us.
♏5.We offer perfect facili✱ties and comfortable environment and can provide training services to different users.
| Company
| Workshop Display
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.
| Process
| Exhibition Show
| Certificates
| SPECIFICATIONS of JG-30S | ||||||||||
| RANGE OF OPERATION | Boom length | 2000mm | ||||||||
| Arm length | 1150mm | |||||||||
| Maximum Digging Reach | 4100mm | |||||||||
| Maximum Digging Depth | 2100mm | |||||||||
| Maximum Digging Force | 15KN | |||||||||
| Maximum Digging Height | 4100mm | |||||||||
| Maximum Dumping Height | 2900mm | |||||||||
| Back-end radius of gyration | 1150mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 4200*1300*2520mm | ||||||||
| Wheel base | 1500mm | |||||||||
| Track(Front/rear) | 1115mm | |||||||||
| Ground clearance of counterweight | 820mm | |||||||||
| Min ground clearance | 185mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 2500kg | |||||||||
| Engine model | 3TE30B | |||||||||
| Rated Power | 22.1KW | |||||||||
| Rated Speed | 2350r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 60L/min | |||||||||
| Variable piston pump | 28ml/r | |||||||||
| Max Hauling force | 20KN | |||||||||
| Walking speed | 12KM/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 28*9-15(7.00) | |||||||||
| Volume Of Bucket | 0.025m³ | |||||||||
| Swing Overload Pressure | 16Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥2L/h | |||||||||
| Capacity Of The Fuel Tank | 47L | |||||||||
| Hydraulic Tank Capacity | 59L | |||||||||
