The Jg120s Cotton Bale Clamp Attachment transforms agricultural excavators into efficient cotton handling specialists, featuring ultra-low noise operation for sensitive farm environments. Its precision hydraulic system ensures secure bale manipulation while minimizing disturbance to livestock and workers.
Tel/Whatsapp : HJC黄金城·:+8618805957336
Fax : 13799243565Email : HJC黄金城·:winny@fjjgjx.com

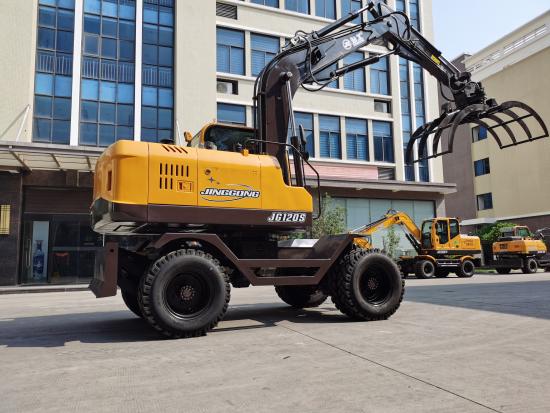

Cotton Handling Grapple Crane
l Cotton Handling Excavator Features
Pick up machine with cotton grapple excavator equipped with more horsepower engine, has the characteristics of high efficiency, low fuel consumption, fast speed, in line with Baoding domestic users for the consistent pursuit of product quality. This multifunctional wheel excavator wood graber is specially designed for users in mountainous and hilly areas of the Chinese market. In the early stage of design, users will be deeply involved in the development and debugging of the product, which is more suitable for the actual use needs of users.
l Main Parameters:
|
(Length*width*height) travel position |
6400*2200*3000mm |
| Machine weight | 8500kg |
| Rated Power |
68kw |
l Certificates:
2. Have advanced equipment and managerial experiences. We have p💦lenty o🌟f experience in sales and design area.
3. Professional sales team, quality inspection & report, maritime logistics guidance.
FAQ
Q:What can i do if there are defective products?
A:In this case, please contact us as soon as possible, we will take quick measurements to solve it.
Q:What is your factory good at ?
A:Our factory are specialized in wheel excavator, crawler excavator, sugarcane harvester, and sugarcane grapple loader, log grabber excavator, mini farming excavator, steel scrap grapple loader, digger machine.
Q:What's the best price you offer ?
A:The price depends on the material ,the quantity,the design and the logo. You can tell us more details that we can quote you with the price. But we ensure that we can give you a best price and the quality.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4100mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 8000mm | |||||||||
| Maximum Dumping Height | 6000mm | |||||||||
| Back-end radius of gyration | 2250mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 6400*2200*3000mm | ||||||||
| Wheel base | 2750mm | |||||||||
| Track(Front/rear) | 1900mm | |||||||||
| Ground clearance of counterweight | 1260mm | |||||||||
| Min ground clearance | 310mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 8500kg | |||||||||
| Engine model | Cummins | |||||||||
| Rated Power | 68KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 28Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Metering gear pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 9.00-20 | |||||||||
| Volume Of Bucket | 0.4-0.5m3 | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Capacity Of The Fuel Tank | 200L | |||||||||
| Hydraulic Tank Capacity | 200L | |||||||||
